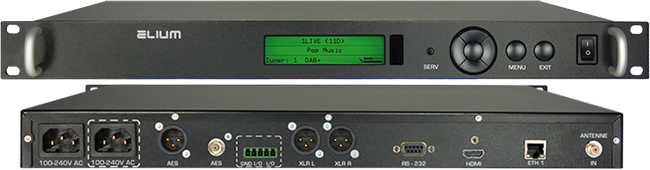

IRD 3040 Broadcast-Radio



The IRD 3040 is a professional bidirectional audio decoder with excellent DAB / DAB + and FM radio reception features. This device is designed for the broadcast sector and has XLR interfaces as well as AES output options.

The Ingest Control feature provides DAB / DAB + as well as FM reception. This will give the user an excellent presentation of the monitoring programs. The output succeeds by the HDMI interface.

In addition to the audio connections, the device has Ethernet interfaces. With this Ethernet interface it is possible to control the hole device via the web server option.

The integrated Ethernet and RS-232 control option give the option to control the IRD 3040 bidirectional and enables an optimal integration into existing control systems. The Ethernet and RS-232 interface grand the user to consult program name (program logo),
program information, EPG information ect..

Through the open GUI (Graphical User Interface) with custom HTML 5 is it possible to design / edit customized user interfaces (wallpapers, logos, menu layout and design, content, etc.).

The devices are designed by high-quality components for continuous operation and are developed and produced in Germany.


 Features:

▪ DAB / DAB+ and FM Singletuner
▪ HDMI - 1080i/p - 720p - 576p
  Automatic monitor adjustment of the resolution or resolution adjustable
▪ Integrated Webserver for administration and control
▪ AES - BNC
▪ AES - XLR - 3pol.
▪ Analog Output balanced Stereo - XLR 3pol.
▪ Bidirectional control via RS-232 / Ethernet
▪ Network conncetion via Ethernet-Port
▪ Grafical Display 192 x 32 pixel shows all technical information like, progarm name,
  Dynamic lable, antenna signal: RSSI, SNR...
  All settings can be done via the Frontpanel
▪ HTML5 based OSD to support changes of background, program logo/-namen, etc.
▪ Servicebutton to turn the display and front panel off (commissioning of more then one device)
▪ Termo controled fan (Power supply and System)
▪ Ingest Control-Function with up to 12 channel



 Optionale Features:

▪ Analog Output balanced Stereo - 5 pol. Phoenix
▪ Analog Output unbalanced Stereo - 2 x RCA
▪ Analog Output unbalanced Stereo - 3,5 plug jack L/R
▪ GPIO - for alarm function - 5 pol. Phoenix
▪ Redundant power supply with automatic changeover
▪ Remote control



file description file size date download
Technical datasheet (german) 192 KB 08.07.2018
Technical datasheet (english) 190 KB 08.07.2018
RS-232 Protocol 112 KB 01.05.2018
PuTTY
MTTTY
High quality image of front 1 MB 01.05.2018
High quality image of back 1.25 MB 01.05.2018
