IRD 4090 12G-SDI
Ultra High Definition Integrated Receiver Decoder designed to meet the highest quality requirements for excellent HDTV, UHDTV 4K (optional), and radio reception.
The IRD 4090 features flexible tuner configurations to receive DVB-S/S2/S2X, DVB-C/C2, and DVB-T/T2/HEVC signals. Two integrated Common Interface (CI) slots (optional) enable the decoding of various Conditional Access Modules (CAMs) to decrypt Pay-TV channels.
Up to two audio streams (Audio L/R, AC3 Dolby Digital) can be simultaneously embedded into the 12G-SDI signal via the integrated matrix. Furthermore, the device optionally supports sinking an ASI input signal (ASI-IN) or sourcing an ASI output signal (ASI-OUT).

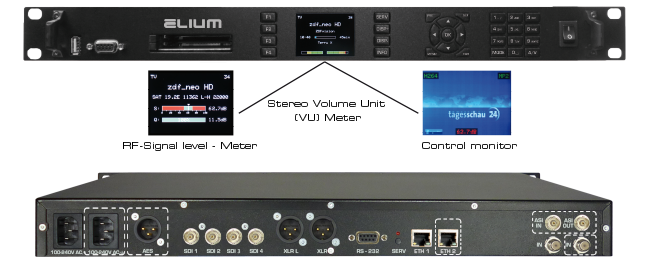

All device settings can be configured via the integrated web server (HTTP/HTTPS) or the front-panel graphical display. The display serves as a control monitor for live program playback and features a stereo volume unit (VU) meter for audio monitoring. Additionally, real-time RF signal level measurements are accessible directly from the front panel.
Integrated Ethernet (Telnet/SSH) and RS-232 interfaces provide comprehensive bidirectional control, ensuring seamless integration of the IRD 4090 into existing control systems. These interfaces allow users to manage program names and logos, as well as retrieve detailed program information, EPG data, and other metadata. Additionally, SNMP support with Traps ensures seamless telemetry and real-time status monitoring within existing broadcast Network Management Systems (NMS).
Received tuner programs can be streamed over the IP network via the 1 Gbps Ethernet interface (optional) as either SPTS (Single Program Transport Stream) or MPTS (Multi-Program Transport Stream).
Engineered with premium components for continuous 24/7 operation, all devices are proudly developed and manufactured in Germany.
Features:
▪ Video Decoding: MPEG-1/-2/-4, H.264 MVC up to 1080p@60fps
▪ Video Resolutions: SD/HD 480i/p, 576i/p, 720p, 1080i/p
▪ Audio Decoding: MP3, AAC, AC3, DTS, WMA, RM, FLAC
▪ Tuner Support: Selectable DVB-S/S2/S2X or DVB-C/C2/T/T2
▪ Network channel search with LCN (Logical Channel Numbering)
▪ Aspect Ratios: 4:3 / 16:9
▪ 12G-SDI Output: 75 Ω BNC connector with 2 x embedded audio streams
▪ Integrated routing matrix to configure SDI audio tracks
▪ Unbalanced Audio: AES output via 75 Ω BNC
▪ Balanced Audio: Analog stereo output via 3-pin XLR
▪ 320x240 Graphical Display: Live TV program monitoring with technical data, full device configuration, stereo VU meter, and integrated RF signal meter
▪ Bidirectional control via 100 Mbps Ethernet (Telnet/SSH) and RS-232 interfaces
▪ Integrated web server (HTTP/HTTPS) for administration and control
▪ SNMP support with Traps for real-time monitoring
▪ Firmware updates via front USB, Ethernet, or web server
▪ HTML5-based OSD supporting custom backgrounds, program logos, custom naming
▪ Teletext, DVB Subtitling, EBU Teletext Subtitling
▪ Electronic Program Guide (EPG) with detailed event information
▪ Thermally controlled fans for power supply and system cooling
▪ Service button to lock/unlock the display, front-panel keypad, and IR remote (ideal for multi-device commissioning)
▪ Independent volume level adjustment per program
▪ Independent audio delay adjustment per program
Optional Features:
▪ Next-Gen Video Decoding: H.264 AVC, H.265 HEVC up to 4K UHD @ 60 fps
▪ Video Resolutions: UHD 4K
▪ Audio Processing: AC3/DTS 7.1 / 5.1 down-mix
▪ Flexible Tuner Combinations:
DVB-S/S2/S2X or DVB-C/C2/T/T2
DVB-S/S2/S2X and DVB-C/C2/T/T2
▪ Multi-Link 12G-SDI Output: 4xSL / 2xDL / 1xQL 12G-SDI interfaces with 2 x embedded audio streams via 75 Ω BNC
▪ ASI Interface: ASI Input / Output via 75 Ω BNC
▪ Balanced Digital Audio: AES output via 3-pin XLR
▪ Up to 2 Common Interface (CI) slots for Conditional Access Modules (CAMs) such as AlphaCrypt (Sky/ORF), Conax, Irdeto, and Nagravision
▪ 1 Gbps Ethernet Port for IP Streaming:
SPTS (Single Program Transport Stream)
MPTS (Multi-Program Transport Stream)
▪ Remote control and external infrared (IR) receiver with a 3.5 mm jack plug
▪ Redundant power supply (independently powered) with automatic changeover (seamless failover)
▪ Up to 2 eSATA interfaces
| Description | Download | ||
| Technical datasheet (german) |  |
||
| Technical datasheet (english) | |
||
| RS-232 / Network protocol specification (english) | |
||
| Firmware update procedure (english) | |
||
| Firmware v01.01 | |
||
| PuTTY | |
||
| MTTTY | |
||
| High quality image of front |  |
||
| High quality image of back |  |
